Raspberry Pi Connectors and Components

what's the connections and components of Raspberry Pi
Share it:
Before you can really get started with the Raspberry Pi, you have to know at least roughly what the connections and components are and what they are good for. That's why it's important to properly identify all the important ports and components of the Raspberry Pi.
task
Connectors and Components of the Raspberry Pi

Obtain a photo or a graphic representation of the Raspberry Pi and record the following connectors and components in a graphing application.
  1. Where is the keyboard and mouse port (USB)?
  2. Where is the network connection (Ethernet / RJ45)?
  3. Where is the connection for a screen (HDMI and RCA video)?
  4. Where is the connection for the loudspeaker (jack)?
  5. Where is the connection for the power supply (Micro-USB)?
  6. Where is the slot for the SD memory card?
  7. Where is the extension slot (GPIO)?
  8. Where is the system-on-chip (SoC) of the Raspberry Pi?
Solution for Raspberry Pi Model A
 Raspberry Pi Model A
Solution for Raspberry Pi Model A +

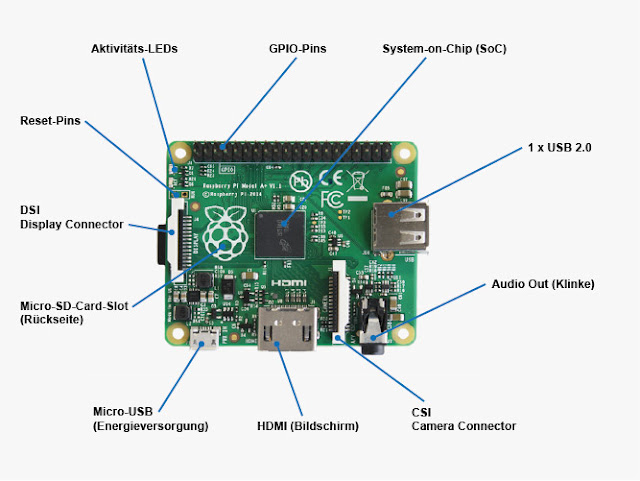

Raspberry Pi Model A +
Solution for Raspberry Pi Model B

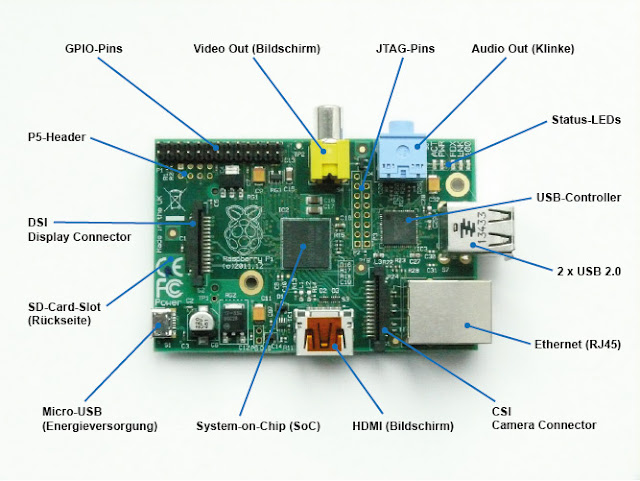

 Raspberry Pi Model B
Solution for Raspberry Pi Model B + and Raspberry Pi 2 Model B
 Raspberry Pi 2 Model B
Solution for Raspberry Pi 3 Model B

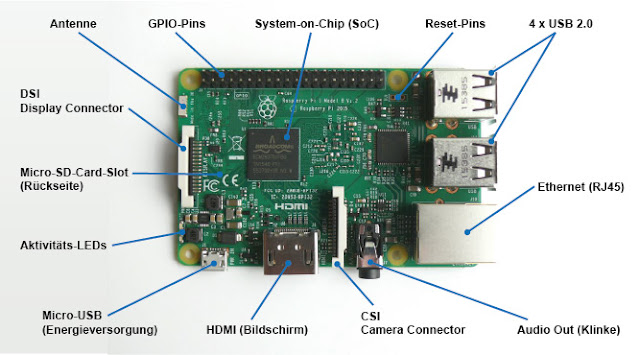

Raspberry Pi 3 Model B
The Raspberry Pi 3 B is barely distinguishable from the Raspberry Pi 2 B at first glance. Form factor and position of the connections are identical. However, the status LEDs have moved from top left to bottom left. At the top left is the antenna for WLAN and Bluetooth.
External connections of a Raspberry Pi
A Raspberry Pi has different connectors that are led out of the case, so they are outside the case. The task is to name them and define what you can do with them.
task
  1. Determine which external connector (outside the case) has a Raspberry Pi.
  2. What can you connect to these external connections?
Solution: External connections of the Raspberry Pi Model B
  • RJ45: Ethernet network
  • 2 x USB: Universal interface, eg. B. WLAN adapter, keyboard, mouse, USB stick, ...
  • HDMI: Digital video and audio output for TV screen
  • RCA jack: video output for screen
  • 3.5mm jack: audio output for speakers
  • SD slot: SD memory card
  • Micro-USB: power supply

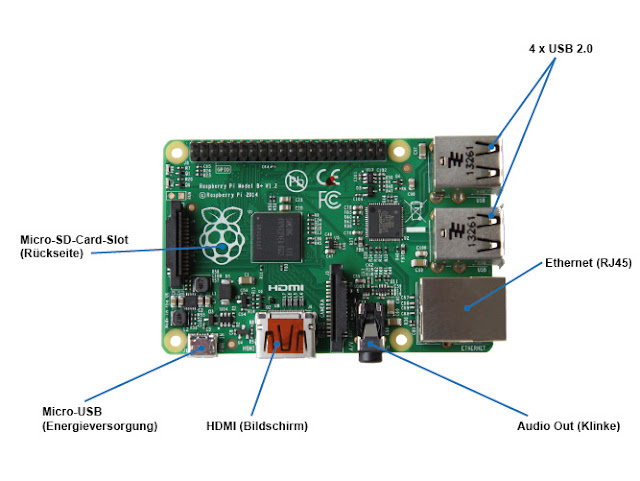

Solution: Raspberry Pi B + external connections, 2 B and 3 B
  • RJ45: Ethernet network
  • 4 x USB: Universal interface, eg. B. WLAN adapter, keyboard, mouse, USB stick, ...
  • HDMI: Digital video and audio output for TV screen
  • 4-pin 3.5 mm jack: Video and audio output for screen and speakers
  • Micro SD slot: Micro SD memory card
  • Micro-USB: power supply
Internal connections of a Raspberry Pi
A Raspberry Pi has different connectors that are located inside the case directly on the board. The task is to name them and define what you can do with them. task
  • Determine which internal connectors (inside the case) a Raspberry Pi has.
  • What can you connect to these internal connections?
Solution: Internal connections of Raspberry Pi Model B

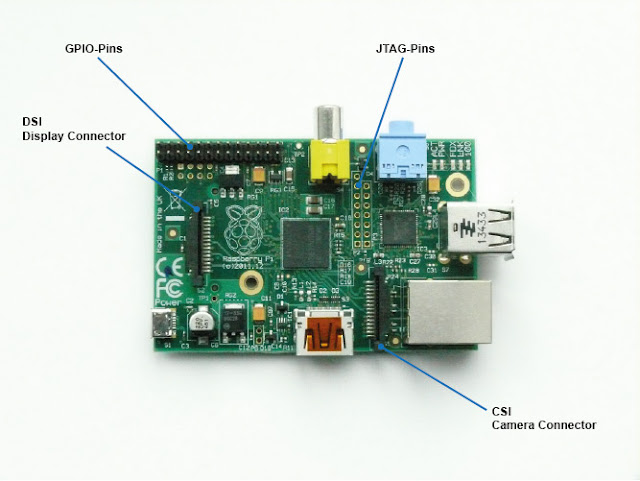

 Internal connections of Raspberry Pi Model B

  • DCI: Display Connector
  • CSI: Camera Connector
  • GPIO: pin header for outputs and inputs and serial buses
  • P5 header: additional GPIO ports
  • JTAG header: Debugging
Solution: Internal connections of the Raspberry Pi B + and 2 B
Internal connections of the Raspberry Pi B

  • DCI: Display Connector
  • CSI: Camera Connector
  • GPIO: pin header for outputs and inputs and serial buses
  • Reset pins: Reset switch
Overview: Ports and Interfaces
Raspberry Pi: HDMI - High Definition Multimedia Interface
Raspberry Pi: USB - Universal Serial Bus
Raspberry Pi: GPIO - General Purpose Input Output
Raspberry Pi: Bluetooth
Raspberry Pi: Audio Extensions
